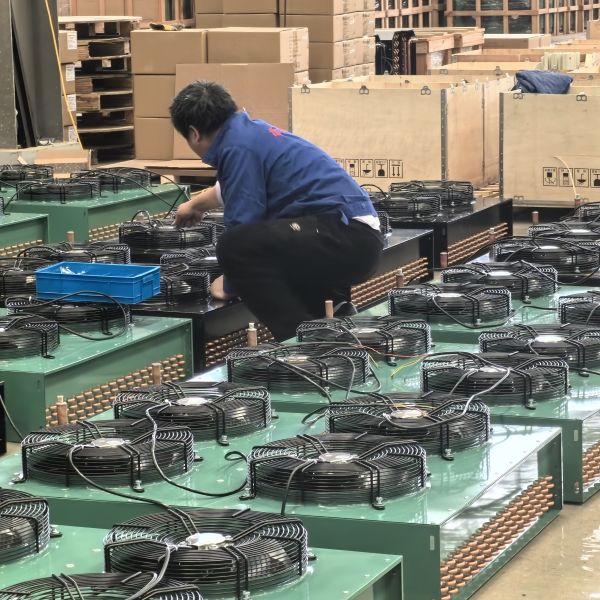

H 2-4 Fans Air Cooler Condenser With Smooth Copper Tube Material
Product Overview
The H condenser is installed on the refrigeration unit in conjunction with the compressor and is suitable for different cold storage temperatures.
Key Features
• Temperature range: 0 to 10°C and -15 to -25°C operation
• Horsepower options: 3HP to 34HP for flexible power selection
• Voltage compatibility: 380V/3P/50Hz, 220V/3P/60Hz, and 380V/3P/60Hz
Technical Advantages
- Compact structure for easy handling and installation
- Complete protective devices for safety and longevity
- Increased condenser for optimal heat dissipation
- Long-lasting cooling effect performance
- Energy efficient - saves up to 30% on electricity bills
- Low noise operation
- Uses brand accessories and parts for reliability
Technical Specifications
| Model |
Heat Exchange Capacity (kW) |
Surface (m²) |
Copper Tube Arrangement |
Fan Qty |
Fan Power (W) |
Air Flow (m³/h) |
Fan Ø (mm) |
Voltage (V) |
Inlet Ø (mm) |
Outlet Ø (mm) |
Weight (kg) |
| FNHM-002 | 0.6 | 2 | 2×4 | 1 | 33 | 500 | 200 | 220 | 10 | 10 | 4 |
| FNHM-003 | 0.8 | 3 | 3×4 | 1 | 33 | 500 | 200 | 220 | 10 | 10 | 4.3 |
| FNHM-003/A | 1.0 | 3.4 | 3×4.5 | 1 | 33 | 800 | 200 | 220 | 10 | 10 | 4.5 |
| FNHM-004 | 1.2 | 4 | 3×5 | 1 | 60 | 800 | 250 | 220 | 10 | 10 | 6 |
| FNHM-005 | 1.5 | 5.2 | 3×6 | 1 | 75 | 1250 | 300 | 220 | 10 | 10 | 8 |
| FNHM-007 | 2.0 | 7 | 4×6 | 1 | 75 | 1250 | 300 | 220 | 10 | 10 | 10.2 |
| FNHM-012 | 3.5 | 12 | 4×8 | 1 | 90 | 1800 | 350 | 380 | 19 | 16 | 13.8 |
| FNHM-015 | 4.4 | 15 | 4×9 | 1 | 90 | 1800 | 350 | 380 | 19 | 16 | 16.5 |
| FNHM-018 | 5.2 | 18 | 4×10 | 1 | 120 | 3000 | 400 | 380 | 19 | 16 | 22 |
| FNHM-022 | 6.4 | 22 | 5×10 | 1 | 120 | 3000 | 400 | 380 | 19 | 16 | 24 |
| FNHM-022/A | 6.4 | 22 | 4×8 | 2 | 2×90 | 2×1800 | 350 | 380 | 19 | 16 | 26 |
| FNHM-028 | 8.1 | 28 | 4×9 | 2 | 2×90 | 2×1800 | 350 | 380 | 19 | 16 | 29 |
| FNHM-033 | 9.6 | 33 | 4×10 | 2 | 2×120 | 2×3000 | 400 | 380 | 19 | 16 | 36 |
| FNHM-041 | 13.0 | 41 | 5×10 | 2 | 2×120 | 2×3000 | 400 | 380 | 19 | 16 | 40 |
| FNHM-049 | 15.0 | 49 | 5×12 | 2 | 2×120 | 2×3000 | 400 | 380 | 19 | 16 | 50 |
| FNHM-055 | 16.5 | 55 | 4×14 | 2 | 2×120 | 2×3000 | 400 | 380 | 22 | 19 | 54 |
| FNHM-060 | 18.0 | 60 | 5×12 | 2 | 2×120 | 2×3000 | 400 | 380 | 22 | 19 | 58 |
| FNHM-062 | 18.5 | 62 | 4×18 | 4 | 4×120 | 4×1800 | 350 | 380 | 25 | 22 | 65 |
| FNHM-070 | 20.0 | 70 | 4×18 | 4 | 4×120 | 4×1800 | 350 | 380 | 25 | 22 | 72 |
| FNHM-072 | 20.6 | 72 | 5×15 | 2 | 2×250 | 2×4500 | 450 | 380 | 25 | 19 | 68 |
| FNHM-080 | 22.3 | 80 | 4×20 | 4 | 4×120 | 4×3000 | 400 | 380 | 25 | 22 | 81 |
| FNHM-080/A | 22.3 | 80 | 5×16 | 2 | 2×450 | 2×6000 | 500 | 380 | 25 | 22 | 81 |
| FNHM-100 | 28.6 | 100 | 5×20 | 4 | 4×120 | 4×3000 | 400 | 380 | 25 | 22 | 90 |
| FNHM-120 | 34.8 | 120 | 5×24 | 4 | 4×120 | 4×3000 | 400 | 380 | 32 | 25 | 105 |
| FNHM-140 | 40.6 | 140 | 6×24 | 4 | 4×250 | 4×4500 | 450 | 380 | 32 | 25 | 128 |
| FNHM-150 | 43.5 | 150 | 5×24 | 4 | 4×450 | 4×6000 | 500 | 380 | 32 | 25 | 135 |
| FNHM-180 | 52.2 | 180 | 6×24 | 4 | 4×450 | 4×6000 | 500 | 380 | 32 | 25 | 170 |
| FNHM-220 | 64.9 | 220 | 6×24 | 6 | 6×250 | 6×4500 | 450 | 380 | 32 | 32 | 210 |
| FNHM-270 | 80.0 | 270 | 6×24 | 6 | 6×450 | 6×6000 | 500 | 380 | 35 | 35 | 255 |
Applications
Cold storage refrigeration systems are essential components for businesses in the food and beverage industry, medical, and chemical storage. These systems maintain consistent and safe temperatures for perishable goods, preventing spoilage and financial losses.
Proper installation and maintenance are crucial for optimal performance and longevity. Routine inspections, cleaning, and upgrades to energy-efficient components can reduce operating costs and improve sustainability.
Support & Services
Our comprehensive technical support package includes installation guidance, operational assistance, and maintenance services. Certified technicians provide prompt solutions for any issues, backed by warranty services for complete customer satisfaction.
Packaging & Shipping
• Packaging: Single unit with protective foam and user manual
• Shipping: 1-2 business days processing
• Free standard shipping within the US
• International shipping available
• Tracking number provided
Frequently Asked Questions
Q1: What certifications does the air cooler condenser have?
A1: The air cooler condenser has CE and ISO certifications.
Q2: What is the minimum order quantity for the air cooler condenser?
A2: The minimum order quantity for the air cooler condenser is 1.
Q3: What is the price range for the air cooler condenser?
A3: The price range for the air cooler condenser is $200~$100,000.
Q4: What are the packaging details for the air cooler condenser?
A4: The air cooler condenser is packaged in a wooden case.
Q5: What is the delivery time for the air cooler condenser?
A5: The delivery time for the air cooler condenser is 30 work days.
Q6: What are the payment terms for the air cooler condenser?
A6: The payment terms for the air cooler condenser are T/T and L/C.
