Refcomp SP4HN1500 SP4HN150E Semi Hermetic Refrigeration Compressor for Walk-in Cold Room
Product Overview
The semi hermetic refrigeration compressor (SP4HN1500/SP4HN150E) is built for high-capacity commercial liquid chilling, medium-to-high temperature cold storage, and heavy-duty HVAC applications. Featuring a 4-cylinder reciprocating design, it provides a displacement of 49 m³/h at 50Hz (58.8 m³/h at 60Hz) with a 15 HP (11.2 kW) rated motor, delivering efficient volumetric output and reliable continuous cooling under dynamic thermal loads.
360° Rotatable Shut-off Valves
Equipped with heavy-duty suction and discharge shut-off valves that feature a 360° rotatable flange design, this semi hermetic refrigeration compressor simplifies mechanical piping layout. Operating engineers can easily adjust valve orientation to align with system piping, reducing installation time and reducing physical stress on suction/discharge connections.
Integrated High-Density Suction Filter
Featuring a built-in high-density suction filter element, the unit removes scale, piping debris, and solid impurities before refrigerant enters the motor chamber. Positioned conveniently on the outer suction flange, the filter allows for quick inspection and routine cleaning without requiring full disassembly of the compressor body.
Advanced INT69B2 Motor Protection Module
To safeguard the motor against thermal overload, electrical imbalance, and high discharge temperatures, the compressor integrates an electronic INT69B2 protection module paired with embedded PTC thermistor sensors. The module continuously monitors internal coil temperatures, cutting control power instantly if safe limits are exceeded to prevent motor damage.
Applications
- Commercial Supermarket & Cold Storage Systems - Provides stable, high-capacity refrigeration for medium-temperature food storage rooms, cold distribution centers, and display cabinets.
- Liquid Chillers & Air Conditioning - Ideal for air-cooled and water-cooled liquid chiller plants supplying commercial building HVAC systems and industrial process cooling loops.
- Industrial Process Fluid Cooling - Delivers consistent thermal control for commercial food manufacturing, beverage cooling, and industrial processing operations.

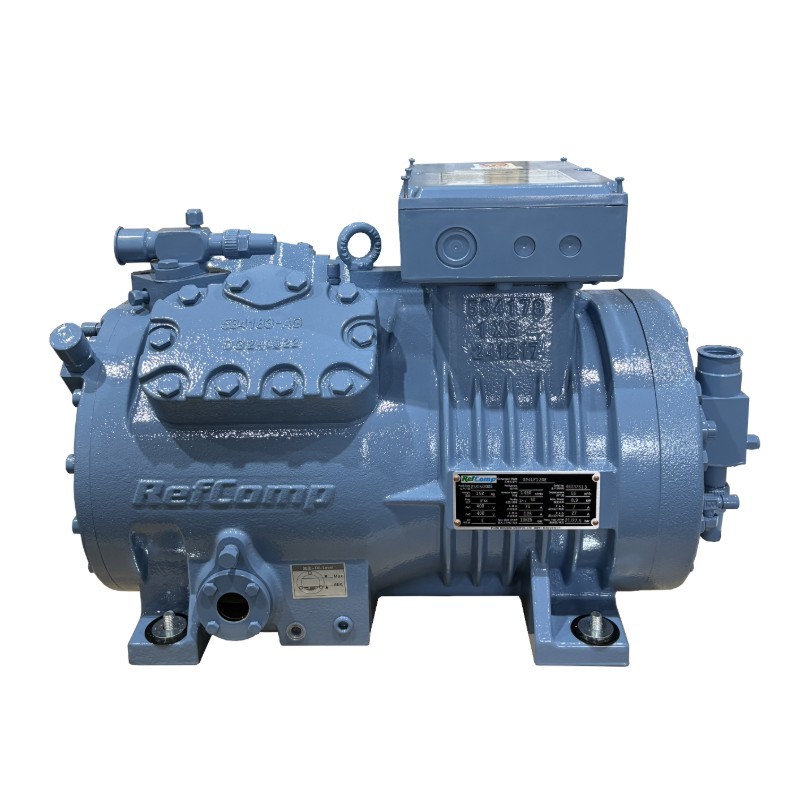

Product Image
Technical Parameters
| Model |
SP4HN1500/SP4HN150E |
| Rated power |
15HP/11.2KW |
| Exhaust volume (50/60Hz) |
49/58.8 m³/hr |
| Standard motor |
400V/3/50Hz, 460V/3/60Hz PW |
| Oil lubrication method |
Splash lubrication (without oil pump) |
| Cylinders |
4 |
| Oil Charge |
2.6L |
| Weight |
152KG |
Company Introduction
Coolstart is an international manufacturer and exporter of commercial and industrial refrigeration equipment, specializing in high-performance reciprocating, scroll, and screw compressor technologies. Engineered to meet strict international efficiency standards, our products feature automated precision manufacturing and flexible OEM/ODM integration options. Coolstart serves engineering contractors, OEMs, and distributor networks across Europe, North America, the Middle East, and Asia-Pacific.
Frequently Asked Questions
Q1: What is the exact displacement and motor output rating of the SP4HN1500/SP4HN150E compressor?
A1: At 50Hz, it delivers 49 m³/h displacement with a 15 HP (11.2 kW) motor; at 60Hz, it provides 58.8 m³/h displacement.
Q2: What capacity regulation options are available on the SP4HN1500/SP4HN150E?
A2: The SP series compressor supports 2-stage step capacity regulation at 50% and 100%.
Q3: Which motor starting options and protection module are used in this model?
A3: The unit supports Part-Winding (PW) starting and Direct-On-Line (DOL) starting, protected by an electronic INT69B2 module and PTC thermistors.
Q4: What is the standard lead time for sample and volume production orders?
A4: In-stock sample units ship within 3 business days, while standard mass production orders take 10 to 15 working days.
Q5: What commercial terms and warranty does Coolstart offer?
A5: All compressors carry a 1-year standard factory warranty. Orders are processed under FOB Shenzhen or EXW terms, with payment accepted via TT or Western Union in USD.
